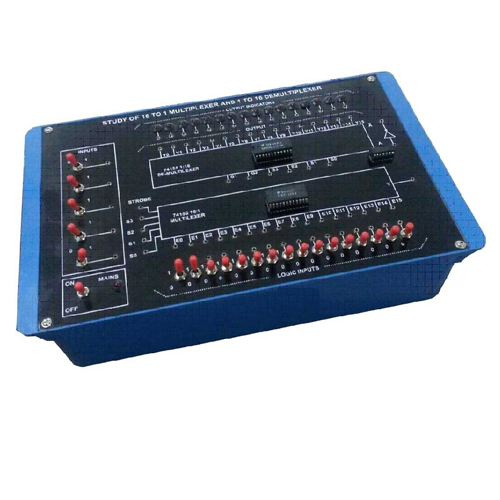

Multiplexer and Demultiplexer Trainer Kit

Name: Multiplexer and Demultiplexer Trainer Kit
Brand: D. D. R. INTERNATIONAL
Price: 25500.0 INR
Availability: InStock

Price 25500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Multiplexer and Demultiplexer Trainer Kit Specification

Accuracy
High

Display Type
LED Indicators

Power Supply
Built-in

Control Type
Manual Switch Selection

Shape
Rectangular

Features
Clearly labeled, user-friendly switches and LEDs, onboard circuit diagrams

Type
Multiplexer and Demultiplexer Trainer Kit

Dimension (L*W*H)
Approx. 300mm x 200mm x 80mm

Equipment Type
Electronic Circuit Trainer

Equipment Materials
ABS Plastic, Laminated Front Panel

Power
230V AC, 50Hz

Voltage
230V AC

Material
High-impact ABS with metal hardware

Application
Educational, Laboratory, Training

Switches
Tactile Push Button and Slide Switches

Connections
Banana Sockets for External Interfacing

Input Channels
16 Inputs (Multiplexer), 16 Outputs (Demultiplexer)

Panel Marking
UV Printed, Easy to Read Layout

Operating Modes
1-to-16 Multiplexer and 1-to-16 Demultiplexer

Output Indication
Individual Red LEDs

Experiment Support
Suitable for performing truth table verification and understanding digital circuits

ICs Used
74LS138 Multiplexer, 74LS154 Demultiplexer

Weight
Approx. 1.2 kg

Model Number
MUX-DEMUX-1016

About Multiplexer and Demultiplexer Trainer Kit

SALIENT FEATURES

Aesthetically designed plastic moulded electronic desk (Main unit) carrying useful experiment resources Variable Power supplies / Status / Pulsar / Function Generator, DPMs etc. while the central slot will carry replaceable experiment panel secured in an plastic moulded plastic sturdy enclosure, & has colorful screw less overlay showing circuit & its connection tag numbers for easy connectivity.

Connection through Sturdy 4mm Banana Sockets & Patch Cords.

Set of Users Guide provided with each Unit.

SPECIFICATIONS OF MAIN UNIT

Built in Power Supply:

DC Supply:5V/1A. & 12V, 1A. 0 to 15V DC (Variable), 100 mA (Isolated), 0 to 30V DC (Variable), 100 mA (Isolated High Volt DC 15V to 110V, 100mA, AC Supply: 12-0-12V AC,150 mA. Short circuit Protected.

Built in Function Generator -

O/p Waveform: Sine, Triangle & TTL O/Ps

Output Frequency: 1 Hz to 1MHz in 6 ranges, with amplitude & frequency control pots. O/P Voltage 20Vp-p max. (Sin/TRG),

Modulation I/P:AM: - I/P voltage + 5V (100% modulation) O/P - For OV (min),

+5V (max.) - 5V (Phase reversal of O/P) FM: I/P voltage 400mV (+ 50% modulation)

Clock Generator: 10 MHz TTL clock.

Data Switches (10 No.) & bi-colour LED status indicators 10X2 Nos, for High/Low indication.

Pulser switches (2 Nos.) with four debounced outputs 2No.

BNC to 2 channel banana adapter - 2No.

Logic probe to detect High/Low level pulses upto 1MHz, with bi-colour LEDs to indicate status.

2/4-digit 7 segment display with BCD to 7 segment decoder.

Onboard DPMs provided with mode/range selection.

(A) DC volt: 2V/200V - 1No.

(B) DC current: 2mA/200mA - 1No.

Onboard moving iron meters provided for

(A) AC Current: 1 AMP - 1No.

(B) AC Voltage: 15V - 1No.

Onboard speaker: 8 Ohms, 0.5 Watt (1No.) Onboard POTS: 1K 1No. 1M - 1No.

Operating Voltage: 220/240Vac switch settable 10%, 50Hz/60VA.

Analog Multiplexer / Demultiplexer & ADC, DAC Expt. Panel: 8 Channel Analog Multiplexer, 1 of 8 Analog Demultiplexer, A to D Converter (3 bit), D to A Converter (4 bit) -weight & binary & R-2R, 2TYPES

Comprehensive Educational Trainer

This kit provides a complete learning experience for understanding and verifying multiplexing and demultiplexing principles. Ideal for classroom and laboratory settings, the MUX-DEMUX-1016 supports a wide range of digital experiments, allowing users to explore logic functions hands-on.

User-Friendly Design and Operation

The panel features UV-printed marking for easy navigation, tactile push buttons, and slide switches for easy manual control. Individual red LEDs indicate outputs clearly, and banana sockets facilitate swift, secure external connections, making it simple to conduct and supervise experiments.

Durable and Safe Construction

Constructed with high-impact ABS plastic, reinforced with metal hardware, and topped with a laminated front panel, this kit ensures durability and safety. The built-in, high-accuracy power supply conforms to 230V AC, 50Hz standards, providing stable and secure operation for various educational and training scenarios.

FAQ's of Multiplexer and Demultiplexer Trainer Kit:

Q: How do I use the Multiplexer and Demultiplexer Trainer Kit to perform truth table verification?

A: You can select input channels using the tactile push buttons and slide switches provided. Observe the corresponding output indication on individual red LEDs for both the multiplexer and demultiplexer modes. This visual feedback allows you to verify logic truth tables for different input combinations effectively.

Q: What types of experiments can be conducted with the MUX-DEMUX-1016 kit?

A: The kit is suitable for practical experiments involving 1-to-16 multiplexer and 1-to-16 demultiplexer circuits. Users can perform basic truth table verification, study the functioning of 74LS138 and 74LS154 ICs, and gain hands-on experience in digital circuit analysis and logic design.

Q: When should I use external banana sockets during experiments?

A: Banana sockets are used for external interfacing when you need to connect the trainer kit to additional equipment or analysis tools. This proves essential during more advanced experiments or when integrating the kit into a larger digital circuit setup.

Q: Where is the best environment to utilize the MUX-DEMUX-1016 kit?

A: This trainer kit is ideal for educational settings such as schools, colleges, engineering laboratories, and training institutes. Its robust construction and user-friendly layout make it equally suitable for classroom demonstrations and individual student experiments.

Q: What is the process for switching between multiplexer and demultiplexer operating modes?

A: The kit allows manual selection via tactile push buttons and slide switches, enabling you to set the desired operation mode. You can easily switch between the 1-to-16 multiplexer and demultiplexer functionalities as required for your experimentation.

Q: How does the onboard LED indication benefit users during experimentation?

A: Each channel output is paired with a dedicated red LED, providing clear, immediate visual feedback for each logic state. This helps users quickly verify the status of their selected circuits and observe real-time changes during experiments.

Q: What makes this kit user-friendly and suitable for beginners?

A: Features such as clearly labeled UV-printed panels, intuitive switch layouts, easy-to-read LEDs, and included circuit diagrams make the MUX-DEMUX-1016 simple to set up and operate, even for users with minimal prior experience in digital electronics.
