Junior Student Microscope

Get a Price/Quote

MOQ : 01 Piece

Junior Student Microscope Specification

Spare Parts
Mirror, eyepiece, objectives (as available)

Focus System
Coarse and fine focus using side knobs

Features
Durable metal body, lightweight, suitable for beginners and educational purposes

View Head
Inclined monocular

Theory
Portable, monocular microscope suitable for student use.

Drawtube
Monocular, 160 mm length

Sensor
N/A (Optical only, not digital)

Resolution
N/A (Dependent on eyepiece and objective)

Interface
Manual operation, no digital interface

Focal Distance
Adjustable via coarse and fine focus knobs

Magnification
100X, 200X, 450X

Dimensions
Approx. 30 cm (height)

Focus Range
Coarse and fine focus available

Eyepieces
10X

Eyepiece Tube
Monocular, vertical

Illumination
Plano-concave mirror for natural light

Coarse Adjustment Range
Approx. 15 mm

Fine Adjustment Range
Approx. 0.5 mm

Working Stage
Fixed stage with slide clips

Image Format
Not Applicable (visual observation only)

Interpupillary Distance
Not adjustable (single viewing tube)

Objective Achromatic
10X, 45X objectives

Condenser
Fixed condenser, disc diaphragm

Light Source
Plano-concave mirror (no built-in electric lamp)

Base
Solid, anti-slip base for stability

Mirror Type
Plano-concave

Color
Black body with chrome adjustments

Application
School laboratories, student demonstration, beginners in microscopy

Body Material
Metal, painted finish

Carrying Handle
Provided on frame for portability

Stage Focus
Manual, with dual slide clips

Packaging
Cardboard box with foam padding

Junior Student Microscope About

1.Body : MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90o assembled from DIE-CAST parts. 2.Viewing Tube :MECHANICAL tube of length 160+1mm. Eyepiece H10x & H15x. 3.Nosepiece :TRIPLE revolving nosepiece with positive centering and click stop. 4.Objectives :10x & 45x (SL). 5.Stage :FIXED square stage of size 120mm X 120mm with Phosphorus stage clips. 6.Focusing :RACK AND PINION knob provided for sensitive focusing. 7.Knobs :SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses. 8.Condenser :TWO LENS ABBE condenser NA 1.25 with continuously variable iris diaphragm and swing-out filter holder. 9. Illumination :STANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp. 10. Magnification : 100x-675x. 11. Packaging contents :Packed in shockproof Styrofoam moulded box or in a plywood cabinet having provision for placing eyepieces and objectives and dust cover. 12. Accessories (optional) *Detachable graduated mechanical stage. *Substage illuminator ML-1. Workable on 220 volts direct. *Huyenian eyepiece H5x or H10x or H15x. *Pointer Eyepiece 5x or 10x or 15x. *Oil immersion 100x (SL) NA 1.25. 13. Warranty Information :2 Years parts.

Purpose-Built for Educational Excellence

Engineered for student and classroom use, this microscope is designed to facilitate hands-on learning in school laboratories. Its easy manual operation, robust metal build, and portability ensure an optimal learning experience for beginners in microscopy, making it a preferred choice among educators and laboratory professionals.

User-Friendly, Reliable, and Safe

Equipped with a solid anti-slip base and a convenient carrying handle, the Junior Student Microscope is secure and simple to transport. The manual focusing system and stable stage with dual slide clips make slide handling and observation easy, while foam-padded packaging protects the instrument during storage and transit.

FAQs of Junior Student Microscope:

Q: How do I focus the Junior Student Microscope for clear observation?

A: You can focus the microscope using the coarse and fine focus knobs located on the side of the body. Start with the coarse knob to bring the specimen into general focus, then use the fine knob for precise and sharp adjustment.

Q: What type of illumination does this microscope use?

A: The microscope utilizes a plano-concave mirror to reflect natural light onto the specimen. It does not require batteries or an electric power source, making it ideal for classrooms and fieldwork.

Q: When should I use the 10X or 45X objective lens?

A: Use the 10X objective lens for low-magnification overviews and the 45X objective lens for detailed examination of smaller specimen structures, in conjunction with the standard 10X eyepiece to achieve magnifications of 100X, 200X, and 450X.

Q: Where can this microscope be effectively used?

A: This microscope is particularly suited for school laboratories, science classrooms, and home learning environments. Its robust construction and portable design make it ideal for student demonstrations and educational settings.

Q: What is the process for changing slides during observation?

A: Simply lift the dual slide clips on the fixed stage, position your prepared slide in place, and gently secure it. The clips hold the slide securely for stable viewing during manual adjustment.

Q: How does the carrying handle benefit users?

A: The carrying handle, integrated into the frame, allows for safe, convenient transportation of the microscope between classrooms or storage areas, contributing to its portability and practical use for students.

Q: What are the main benefits of the metal body and anti-slip base?

A: The metal body ensures long-lasting durability, while the anti-slip base provides stability on laboratory surfaces, reducing the risk of accidental tipping or movement during use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Educational Microscopes Category

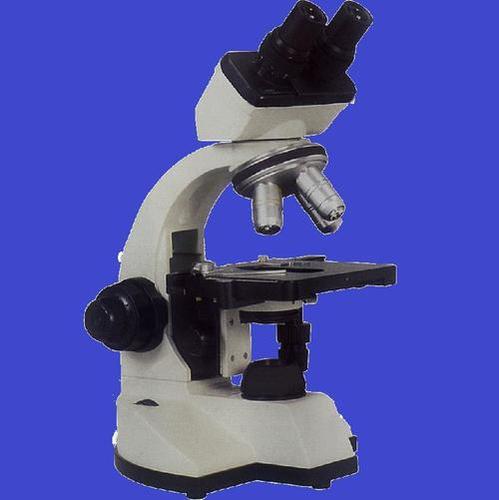

Co-axial Microscope
