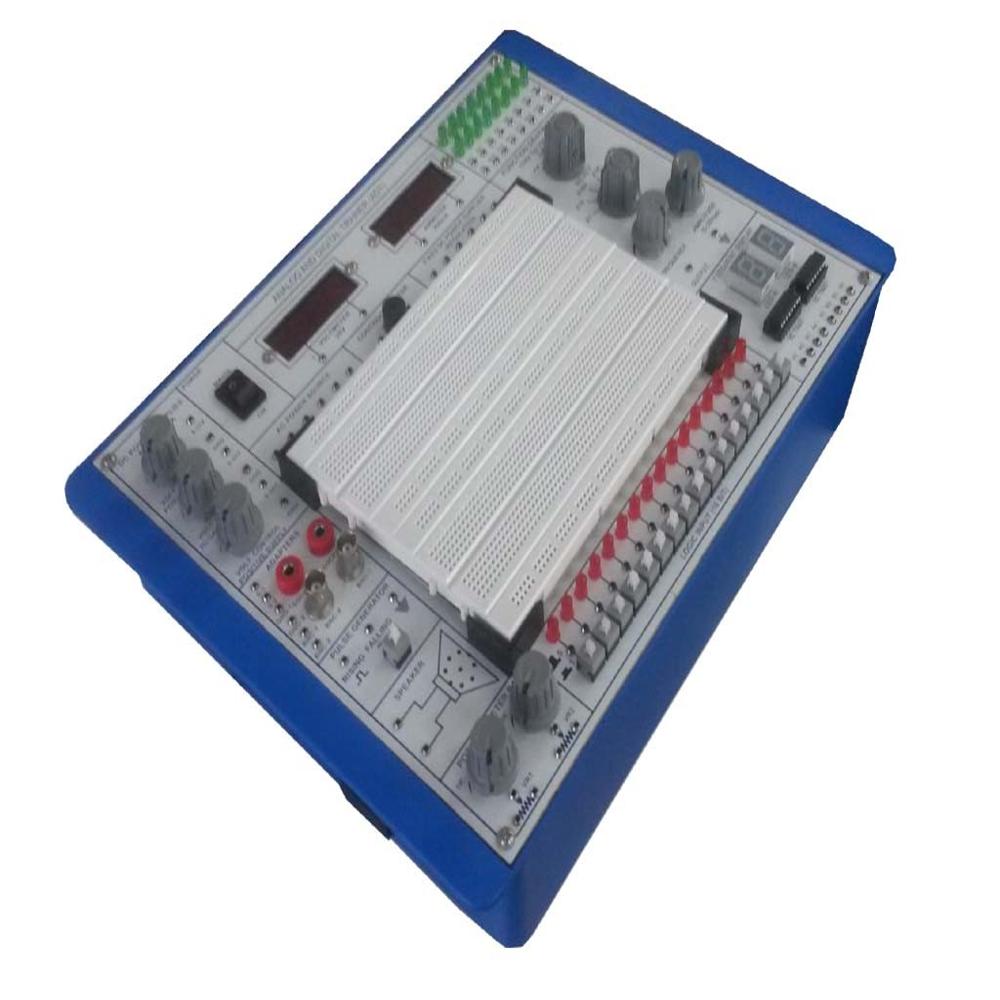

ET-048A ANALOG & DIGITAL BREAD BOARD TRAINER WITH PLUG IN MODULES

About ET-048A ANALOG & DIGITAL BREAD BOARD TRAINER WITH PLUG IN MODULES

SCOPE OF LEARNING:

Study and Construction of Analog and Digital Electronics Lab Experiment

TECHNICAL SPECIFICATIONS:

Power Supplies:

DC Power Supply IC Regulated 5V, 12V @ 500mA.

DC Power Supply IC Regulated 0 to 30V @ 250mA (3Nos.)

AC Power Supply 9-0-0 VAC,12-0-12VAC

Operated On Mains Power 230v, 50hz +10%

Digital Meters:

Voltmeter 20VDC.

Ammeter 200mA DC.

Solder-less, breadboard (Easy to remove)

Logic Inputs & Outputs 16 Bit

Trainer Contains 4 Bit BCD To 7 Segment Indicators With Inputs A, B, C, D Inputs 2Nos.

Logic Low Frequency Mono Pulsar With Rising And Falling Edge.

Frequency Generator 1Hz to 100 KHz (Variable Frequency and Amplitude)

2 Variable Resistors are given on Board.

One Low Frequency Speaker.

Buzzer as Continuity Tester.

2 BNC to Socket Adapter on Board.

SALIENT FEATURES:

Front Panel Built With High Class Insulated Printed Circuit Board Sheet With Well Printed Circuits And Symbols.

Fuse For Short Circuit Protection

Instruction Manual.

Connections are brought out through 2mm Brass Sockets.

Patch Cords 2mm with Bread Board Pin (25Nos).

The trainer is housed in ABS Plastic cabinet.

Size of the trainer set 12x10

OPTIONAL ACCESSORIES:

As Per Experiments

LIST OF MODULES:

Analog Electronics Modules

Digital Electronics Modules

LISTS---

ADT-002 DISCRETE COMPONENT TRAINER

ADT-003 RLC RESONANCE TRAINER

ADT-004 LOW PASS AND HIGH PASS FILTER

ADT-005 NETWORK THEOREM

ADT-006 AC FUNDAMENTAL THEOREM

ADT-007 OHM'S LAW AND KCL-KVL

ADT-008 ASTABLE USING 555

ADT-010 RC PHASE SHIFT OSCILLATOR

ADT-009 TRANSISTOR AS A SWITCH (SWITCHING ACTION OF BJT)

ADT-011 WEIN BRIDGE OSCILLATOR

ADT-012 HARTLEY OSCILLATOR

ADT-013 COLPITTS OSCILLATOR

ADT-014 BISTABLE USING 555

ADT-015 MONOSTABLE USING 555

ADT-016 INTEGRATOR USING OP-AMP

ADT-017 DIFFERENTIATOR USING OP-AMP

ADT-018 CLIPPING AND CLAMPING MODULE

ADT-019 HARTLEY-COLPITTS OSCILLATOR MODULE

ADT-020 VOLTAGE REGULATOR MODULE

ADT-021 TRANSISTOR AMPLIFIER MODULE

ADT-022 MULTIVIBRATOR MODULE

ADT-023 STUDY OF 555 TIMER

ADT-024 CRYSTAL OSCILLATOR

ADT-025 TWO STAGE RC COUPLED AMPLIFIER MODULE

ADT-026 PUSH PULL AMPLIFIER

ADT-027 COMMON SOURCE JFET AND MOSFET AMPLIFIER

ADT-028 INVERTING AND NON INVERTING OP-AMP

ADT-029 OP-AMP AS SUMMING AND DIFFERENCE AMPLIFIER

ADT-030 INTEGRATOR AND DIFFERENTIATOR USING OP-AMP

ADT-031 RC COUPLED AMPLIFIER (SINGLE STAGE)

ADT-032 NORTON'S THEOREM MODULE

ADT-033 THEVENIN'S THEOREM MODULE

ADT-034 HALF WAVE RECTIFIER

ADT-035 FULL WAVE TRAINER

ADT-036 MAXIMUM POWER TRANSFER THEOREM

ADT-037 SEMICONDUCTOR CHARACTERISTICS MODULE

ADT-038 DIRECT COUPLED AMPLIFIER

ADT-039 COMMON COLLECTOR AMPLIFIER (EMIITER FOLLOWER)

ADT-040 SCR CHARACTERISTICS MODULE

ADT-041 UJT CHARACTERISTICS MODULE

ADT-042 TRIAC CHARACTERISTICS MODULE

ADT-043 DIAC CHARACTERISTICS MODULE

ADT-044 FET CHARACTERISTICS MODULE

ADT-045 TWO OP AMP MODULE

ADT-048 TRANSISTOR CHAR. MODULE

ADT-049 SWITCHING ACTION OF MOSFET

ADT-050 OPTO COUPLER CHARACTERISTICS

ADT-051 BAND GAP OF PN JUNCTION AND THERMISTOR

ADT-052 GTO CHARACTERISTICS MODULE

ADT-001 LOGIC GATE MODULE

ADT-046 DIGITAL IC TESTER

DLT-100 4BIT PARALLEL ADDER SUBTRACTOR

ADT-101 ENCODER-DECODER

ADT-102 DEMORGAN'S THEOREM

ADT-103 4 BIT MULTIPLEXER-DEMULTIPLEXER

ADT-104 UNIVERSAL GATE NAND NOR

ADT-105 4 BIT SERIAL IN PARALLEL OUT SHIFT REGISTER

ADT-106 FLIP FLOP

ADT-107 BCD TO 7 SEGMENT

ADT-108 TTL AND CMOS INTERFACING

ADT-110 FLASH TYPE A TO D CONVERTER

ADT-111 SYNCHRONOUS AND ASYCHRONOUS COUNTER

ADT-112 PARITY GENRATOR AND CHECKER

ADT-113 ARITHMATIC LOGIC UNIT (ALU)

ADT-114 8 BIT MUX AND DMUX

ADT-115 FULL ADDER AND SUBTRACTOR USING NAND GATE

ADT-116 RANDOM ACCESS MEMORY (RAM)

ADT-117 D TO A CONVERTER (DAC)

ADT-118 4 BIT COMPARATOR

ADT-119 A TO D CONVERTER (ADC)

ADT-120 CMOS CHARACTERISTICS

ADT-121 TTL CHARACTERISTICS

ADT-122 16 BIT MUX DMUX

ADT-123 RTL LOGIC GATE

ADT-124 LOGIC GATE USING DTL

ADT-125 ADC AND DAC CONVERTER (R-2R AND FLASH TYPE)

ADT-126 8 BIT EQUALITY DETECTOR

ADT-127 16 TO 4 ENCODER

ADT-128 BOOLEAN EXPRESSION MODULE

ADT-129 MASTER SLAVE FLIP FLOP

ADT-130 CODE CONVERTERS

Versatile Experimentation Platform

Equipped with both analog and digital functionality, the ET-048A trainer enables students and engineers to construct, test, and analyze a broad range of electronic circuits. Whether you are working with TTL or CMOS technologies, its adaptability ensures hands-on learning for diverse electronic experiments.


Robust Safety and Quality

Constructed with a durable ABS plastic enclosure and fitted with slip-resistant rubber feet, the ET-048A ensures stability and safety during operation. Electronic fuse protection safeguards components, making it a reliable choice for intensive academic and laboratory environments.


Comprehensive Features for Learning and Innovation

From its built-in function generator (1Hz-100kHz) to plug-in, expandable modules and 16 logic LED indicators, the trainer is tailored for both guided instruction and creative circuit design. Multiple regulated power supplies and accessories further enhance its educational value.
