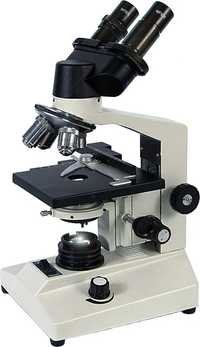

Metallurgical Microscope

Get a Price/Quote

MOQ : 01 Piece

Metallurgical Microscope Specification

Spare Parts
Eyepieces, objectives, fuse, halogen lamp, dust cover

Focus System
Coaxial coarse & fine focus system with tension adjustment

Features
Reflected and transmitted light, ergonomic design, anti-fungus optics, modular camera upgradeable

View Head
Trinocular or Binocular, inclined, 360 rotatable

Theory
Upright Metallurgical Microscope for reflected and transmitted light observation in material sciences.

Drawtube
Binocular/Trinocular head, 360 rotatable, inclined at 45

Sensor
Optional camera adapter with CMOS sensor (when fitted with digital camera)

Resolution
Up to 5.0 MP (digital camera dependent)

Interface
USB 2.0/3.0 (digital camera accessory)

Frame Rate
Up to 60 fps (when digital camera installed)

Focal Distance
Infinity-corrected optical system

Magnification
50x to 1000x (using standard objectives and eyepieces)

Dimensions
Approx. 420mm x 220mm x 480mm (L x W x H)

Focus Range
Coarse and fine focusing, vertical movement of stage ~30mm

Eyepieces
WF10x/22mm with diopter adjustment

Eyepiece Tube
Trinocular or binocular, anti-fungus treated

Illumination
6V/20W halogen lamp, with adjustable intensity and field diaphragm; epi-illumination for reflected light

Coarse Adjustment Range
30mm or more

Fine Adjustment Range
0.002mm precision

Working Stage
Double layer mechanical stage, size 140x140mm, movement range 75x50mm

Still Image Capture Resolution
Up to 2560x1920 pixels (with digital adapter)

Video Capture Resolution
1080p Full HD (with digital adapter)

Image Format
JPG, BMP, TIFF (when equipped with digital camera)

Interpupillary Distance
55-75mm adjustable

Objective Achromatic
4x, 10x, 40x, 100x (oil); infinity plan achromatic

Condenser
NA 1.25 Abbe condenser (transmitted), with iris diaphragm

Light Source
Halogen lamp 6V/20W (reflected/transmitted illumination)

Power Supply
AC 220V/110V, 50/60Hz

Nosepiece
Revolving quadruple nosepiece

Material
Rugged all-metal frame with corrosion-resistant finish

Safety Features
Overheat and surge protection in illumination system

Blue, Green and Yellow Filters
Included for enhanced contrast

Application Fields
Metallurgy, industrial inspection, material research, forensic analysis, semiconductor and electronics

Stage Vernier Scale
0.1mm resolution

Packing
Thermocol molded case with instruction manual and dust cover

Polarizing Attachment
Optional polarizer/analyzer attachment available

About Metallurgical Microscope

We are an unparalleled name engaged in offering premium quality Metallurgical Microscope that is mainly used in ceramography, plastography field and other metal industries to see objects that are too small for the naked eye. Offered microscope is manufactured by our seasoned experts using premium quality components as per the set industrial standard. In addition to this, offered microscope is tested against set parameters of quality to ensure a flawless range from us. Available in various specifications, this Metallurgical Microscope is offered to our clients at most reasonable prices.

Features:

Contrast and clear view of object
Excellent focusing range
Long service life
Less maintenance

Advanced Optics and Flexible Imaging

This metallurgical microscope boasts infinity-corrected optical systems, achromatic objectives, and ergonomic viewing heads available in trinocular or binocular forms, ensuring both clarity and comfort. The optional camera adapter with CMOS sensor supports high-resolution image and video capture for comprehensive documentation, with formats like JPG, BMP, and TIFF accessible via USB interfaces.

Durable Construction and Safety Assurance

Engineered with a robust metal frame and corrosion-resistant finish, this microscope can withstand demanding environments. Integrated overheat and surge protection ensures uninterrupted, safe usage. Its anti-fungus treated optical components and packaged dust cover further prolong its operational lifespan.

Precision and Convenience in Laboratory Settings

Featuring a double-layer mechanical stage with precise vernier scale, coarse and fine focusing mechanisms, and variable illumination for both reflected and transmitted light, users achieve accurate, repeatable results. The modular system allows upgrades with additional eyepieces, objectives, and digital cameras, supporting evolving needs in research and industry.

FAQs of Metallurgical Microscope:

Q: How does the polarizing attachment enhance metallurgical analysis?

A: The optional polarizer/analyzer attachment enables detailed examination of material structures by manipulating polarized light, revealing grain boundaries, stress patterns, and phase differences that are often invisible under standard illumination.

Q: What benefits do the blue, green, and yellow filters provide during inspection?

A: These color filters, included with the microscope, improve image contrast and highlight specific features in metallic and non-metallic samples. This aids in distinguishing material phases and fine structures under varying lighting conditions.

Q: When should a trinocular head and camera adapter be used with this microscope?

A: A trinocular head with a digital camera adapter is ideal when documentation, image sharing, or live video observations are required. This setup supports educational, research, and industrial environments where digital archiving and remote collaboration are essential.

Q: Where is this microscope most effectively applied?

A: It excels in metallurgy labs, material research centers, forensic departments, semiconductor industries, and electronics inspection facilities, providing detailed visualization of samples thanks to its dual reflected and transmitted light capabilities.

Q: What is the process for switching between reflected and transmitted light observation?

A: Users can easily select the illumination mode by adjusting the epi-illumination for reflected light or engaging the Abbe condenser for transmitted light. The dual system enables swift transitions for comprehensive sample analysis.

Q: How does the vernier scale and mechanical stage assist in precise measurements?

A: The stages 0.1mm vernier scale and mechanical design allow for accurate positioning and movement of the sample, making repeatable measurements essential for quantitative analysis and documentation.

Q: What ergonomic and safety features are included for extended usage?

A: The inclined, rotatable viewing head, anti-fungus optics, and tension-adjustable focus systems ensure comfortable long-term operation. Overheat and surge protection in the illumination system safeguard both the device and the user during extended inspection sessions.
