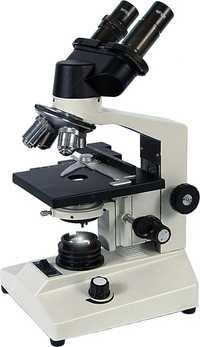

Binocular Microscope

Binocular Microscope

Send Inquiry

Request To Call Back

Binocular Microscope

Get a Price/Quote

Binocular Microscope Specification

Theory
Optical

Drawtube
Binocular

Focal Distance
160mm (Standard)

Magnification
40x 100x 400x 1000x

Dimensions
Height: 370mm Width: 180mm Length: 220mm

Focus Range
30mm

Eyepieces
WF10x eyepieces

Eyepiece Tube
Inclined 45 degrees

Illumination
LED illumination adjustable brightness

Coarse Adjustment Range
15mm

Fine Adjustment Range
0.002mm

Working Stage
Double-layer mechanical stage 125mm x 115mm

View Head
Binocular head rotatable 360 degrees

Interpupillary Distance
Adjustable 55-75mm

Objective Achromatic
Achromatic objectives: 4x 10x 40x 100x (oil immersion)

Condenser
Abbe condenser with adjustable iris diaphragm

Light Source
LED

Binocular Microscope About

Driven by technical excellence, we are counted as the topmost manufacturer, exporter and supplier of excellent quality range of Binocular Microscope that is used in research centre and biological laboratories to visualize the two dimensional image of a micro object. The microscope provided by us is manufactured by adept professionals at our well-equipped production unit using supreme quality components as per the defined international standards. Moreover, offered Binocular Microscope can be bought in various technical specifications at most competitive prices.

Features:

Smooth coaxial knob for focus adjustment
Excellent contrast control
Negligible maintenance
Longer service life

FAQs of Binocular Microscope:

Q: What magnification levels are supported by the Binocular Microscope?

A: The Binocular Microscope supports magnifications of 40x, 100x, 400x, and 1000x.

Q: What is the fine adjustment range of the Binocular Microscope?

A: The fine adjustment range of the Binocular Microscope is 0.002mm.

Q: What type of eyepieces are included with the Binocular Microscope?

A: The Binocular Microscope comes with WF10x eyepieces.

Q: Can the interpupillary distance be adjusted on the Binocular Microscope?

A: Yes, the interpupillary distance on the Binocular Microscope is adjustable from 55mm to 75mm.

Q: What is the focus range of the Binocular Microscope?

A: The focus range of the Binocular Microscope is 30mm.

Q: What type of illumination does the Binocular Microscope have?

A: The Binocular Microscope is equipped with LED illumination with adjustable brightness.

Q: Does the Binocular Microscope have a double-layer mechanical stage?

A: Yes, the Binocular Microscope features a double-layer mechanical stage measuring 125mm x 115mm.
